Selenium Java Framework: A Layered UI + API Automation Skeleton

Description#

A layered Selenium test automation skeleton built as a reusable starting point for new projects, rather than a single test suite tied to one application. It demonstrates structured UI testing alongside integrated API test capabilities, so a team doesn’t need two separate frameworks to cover both layers.

Key Features#

• Page Object Model: A BasePage class provides explicit-wait helpers, keeping individual page objects focused on locators and actions rather than synchronization boilerplate.
• Feature Layer: Wraps multi-step business workflows (e.g. a full checkout flow) for reuse across tests, while single-page actions deliberately bypass the abstraction — the framework documents when not to use it, to avoid over-engineering simple tests.
• REST API Testing: A REST Assured wrapper lets API tests live in the same suite as UI tests, sharing configuration and reporting.

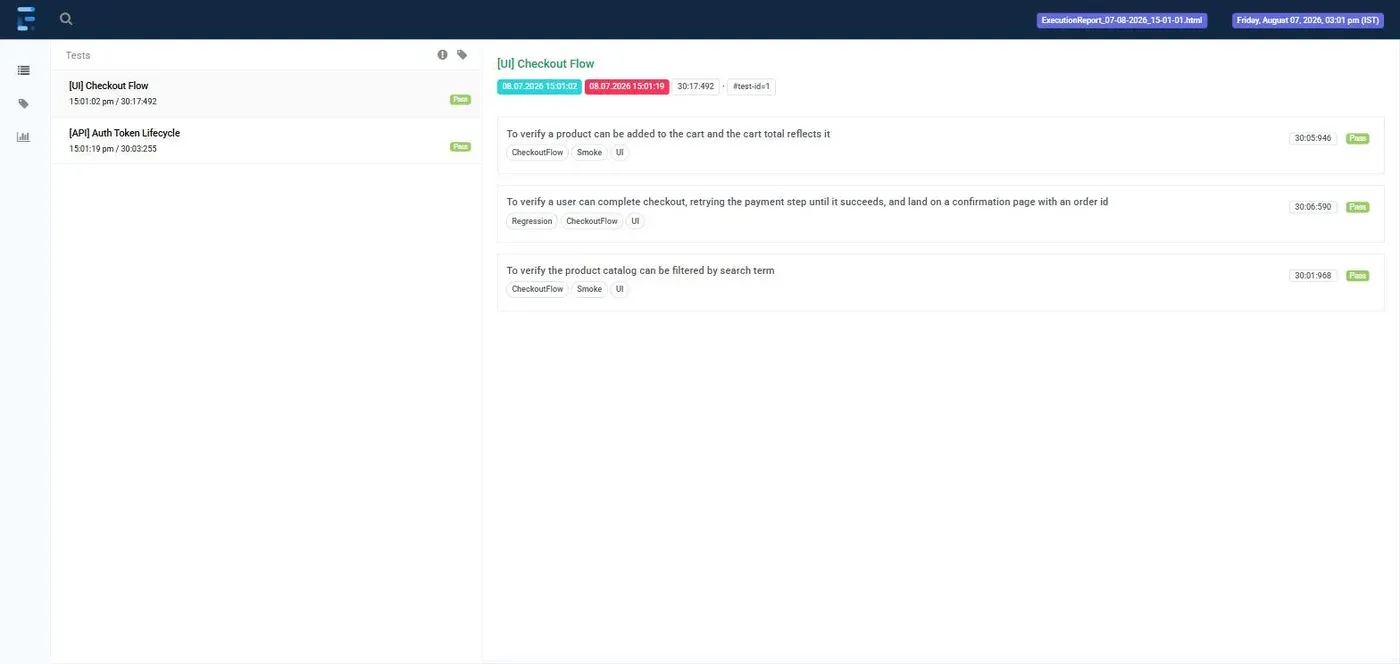

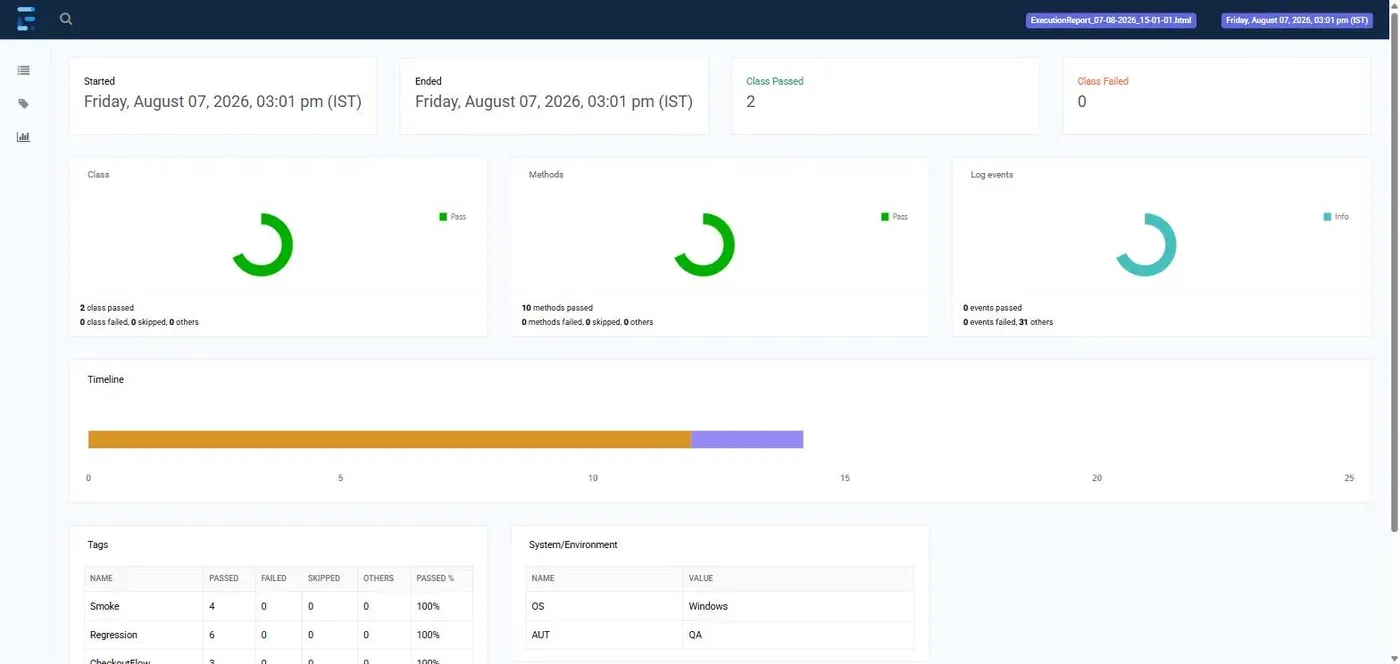

• Reporting: Extent Reports with optional Klov live-reporting, plus Excel-based result tracking via Apache POI.
• Per-Run Artifacts: Logs, screenshots, and downloads are organized into timestamped Output/ directories per run.
• Configuration: Property-file based, so environment differences (dev/staging/prod) don’t require code changes.
• Test Metadata Pipeline: Custom @Module annotations flow through into the generated reports for better traceability.

Example Suites#

The framework ships two complete example test suites that double as usage documentation:

• A multi-page checkout flow exercising session state across pages via the Feature layer.
• A bearer-token API lifecycle covering token issuance, rotation, and revocation via the REST Assured wrapper.

Usage Scenarios#

• Regression Testing: Automate UI regression suites without maintaining a second framework for API checks.
• New Project Bootstrap: Use as a starting skeleton for teams standing up Selenium automation from scratch.
• CI Integration: TestNG + Maven structure integrates cleanly into CI/CD pipelines for continuous testing.
